Motor Card Dispensers

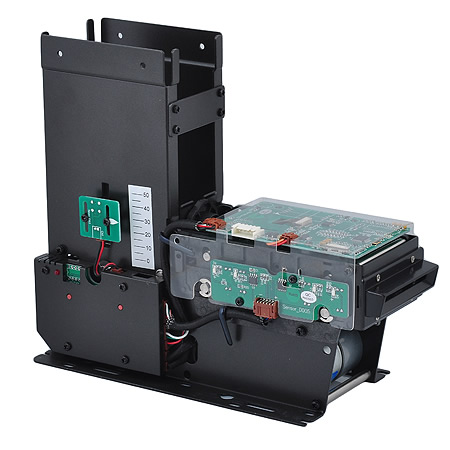

Motorized RFID/IC Card Dispenser: MTK-F31

Card Issuing Machine: MTK-F31

Card Issuing Machine: MTK-F31

MTK-F31 card dispenser is the full functional smart card dispenser. It’s well designed with a balance of cost and stability for batch deployment. With innovative mechanical design, the model features unique capability of reading IC/RFID card served from both card stackers or users.

Features:

  • Balance of stability and cost with reliable performance;
  • All-round ability of IC and RF card dispensing/collecting/reading/writing;
  • Easy Card thickness adjustment, which can be done by the turn of adjustment knob-setting;
  • Flexible interface choice: RS-232, PC/SC(RS232+USB);

Specifications:

  • Supported Cards:
    • Contact Cards: ISO7816 T=0/T=1;
    • Contactless Cards: ISO14443 Type A&TypeB;
  • Card Dimensions: 54mmx86mm; Thickness: 0.2~1.2mm;
  • Card Types: All Cards Issuing/collecting/recycling, IC/RFID reading/writing;
  • Stack Capacity:
    • Default: 0.8mmx175PCS,Embossed*130PCS;
    • Extension: to 320/500 by accessory MTK-S003;
    • Error Card Bin: 0.8mm*25pcs;
  • Communication Port: RS-232, PC/SC(RS232+USB);
  • Power Supply: DC24V±5%;
  • Speed: 1.0-2.0 seconds
  • Dimensions: 224.7(L)x100(W)x220(H)mm
  • Weight: 1.6Kg;
  • Temperature: -10℃~50℃;

MTK-F31 card dispenser machine uses the easy to understand API commands to be used for issuing the commands for dispense, empty status, ready status, and others. We provide free card dispenser API tester software to assist the software developers to quickly integrate their card dispensers into your kiosks, vending machines, gaming machines etc.
