Card Issuing Machines

Automatic Card Issuing Machine: MTK-F11

Card Issuing Machine: MTK-F11

Card Issuing Machine: MTK-F11

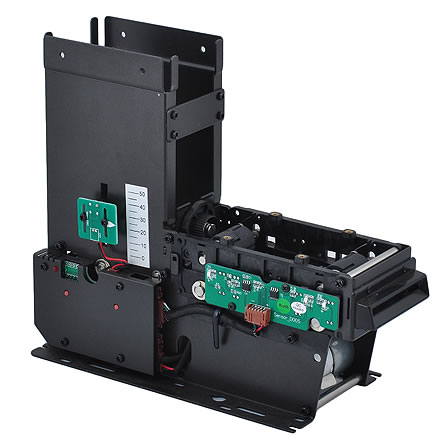

MTK-F11 card issuing machine is a standard profile motor card dispenser with RFID Antenna space. MTK-F11 is designed to have both card dispensing and collecting functions in one machine, which brings great convenience in  your card vending and recycling solutions.

With reserved antenna space,   MTK-F11 can cowork with mounted various third party RFID card readers of different interfaces such as Wiegan 26/34, RS232 or PC/SC USB. Furthermore, card channels avails least metal material to enhance RF sensitivity and minimize interference.

Features:

  • Compact and versatile design with great expansibility and stability;
  • 2-in-1 design for implementing both dispensing and collecting functions;
  • Easy extensibility with reserved atena space for mounting of different RF card readers;
  • data:text/mce-internal,Optional RS232 or TTL controller for professional or quick deployment solutions.

Specifications:

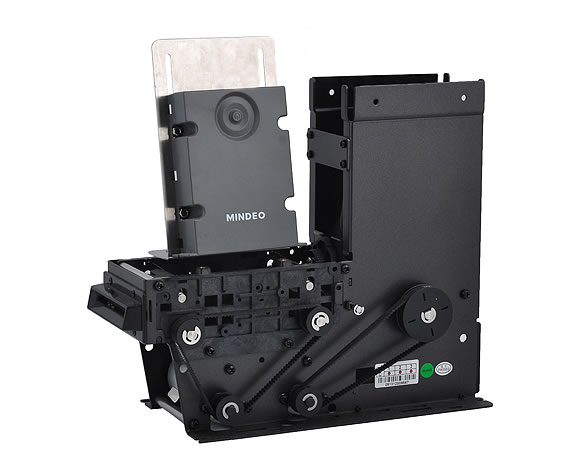

Dispenser+Barcode Scanner

MTK-F11 with 1D or 2D Barcoder

  •   Card Types:Issuing only, no reading or encoding by default
    • Dimension: 54mmx86mm;
    • Thickness: 0.2~1.2mm(ISO standard cards);
    • Up to 175pcs cards(0.8mm);
  • Communication Port: RS-232/TTL;
  • Power Supply: DC 24V±5%;
  • Temperature:-10℃~60℃;
  • Weight: 1.6Kg;
  • Dimension: 224.7x100x220mm

MTK-F11 satisfies most applications of self-service card dispensing and collecting. It’s also customizable with third party RFID Card reader to build your own RFID Smart Card Dispenser. You may also refer to MTK-F31 smart card dispenser with support of both contact and contactless cards.
