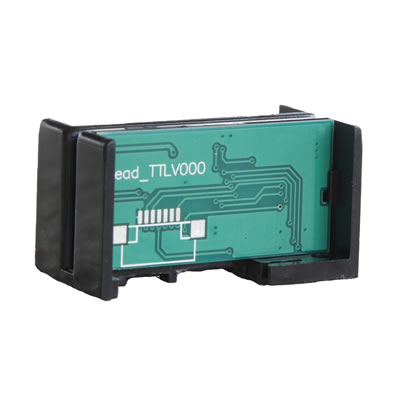

Magnetic Swipe Card Reader: MTK-T1S

Magstrip Card Reader MTK-T1S

Magstrip Card Reader: MTK-T1S

MTK-T1S is compact magnetic swipe card reader.  It reads 3 tracks of data with a single swipe in either direction and conforms to industry ISO7811/7812 specifications.  It’s easy to be integrated into kiosks, security systems and vending devices etc.

 Features:

  • Compact Design and Easy Integration with existing systems;
  • Bi-directional reading of up to 3 tracks of magnetic data;
  • Long life magnetic read head and TTL interface;

Specifications:

  • Card Standard: ISO7811/7812
  • Feeding Speed: 15~120cm/sec
  • Interface: TTL;
  • Power Supply: DC 3.3v~5.5v
  • Magnetic Head Life: >500,000 swipes;
  • Dimension: 43x23x23mm(LxHxW);
