Motor Card Reader/Writer

Motorized Magnetic/IC/RFID Card Reader/Writer: MTK-R31

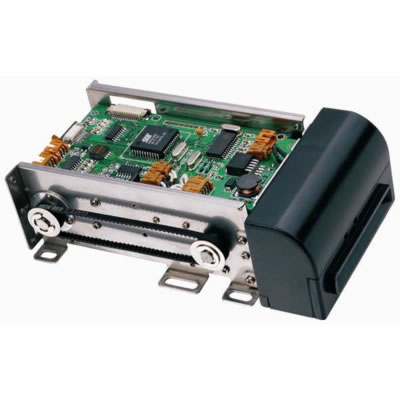

MTK-R31 Motor Card Reader Writer

MTK-R31 Motor Card Reader Writer

MTK-R31 is a revised hybrid motor card reader/writer that can support ISO standard magnetic stripe card reading and RFID&IC card Reading/Writing. It supports card feeding in/out from both front and rear side.  Special bezel design can effectively prevent jamming and dust intrusion.
Features:

  1. Hybrid functions for magnetic reading and RFID/IC Reading/Writing;
  2. Card Feeding in/out from front and rear, optional card recycling box;
  3. Auto card spitting on power outrage, auto card detection and anti-intrusion design;
  4. Optional PSAM board, PBOC2.0 &EMV certified;

Specifications:

  • Card Type:
    • Magnetic Card Read: ISO7810 ID-1, ISO7811;
    • IC Card Read/Write: ISO7816-2 compliant; T=0, T=1 CPU Card;  T=0, T=1 SIM Card;
    • RFID Read/Write: ISO14443Type A&B; Mifare S50、S70、UL
  • Card Dimension: 55*86mm, 0.4~1.2mm thickness(Default: 0.8mm);
  • Communication: RS-232 or USB 2.0;
  • Life Cycles: Magnetic Head>500,000 times;  IC Contact>300,000 times;  Motor>500,000 cycles;
  • Power Supply: DC 12V±5%;
  • Environmental: Operating 0~50℃/0~90%RH(non-condensing); Storage -20~70℃/0~90%RH(non-condensing);
  • Weight: 0.5Kg;
  • Dimension: 147mm*79mm*47.6mm(L*W*H);

MTK-R31 motorized card reader writer is applicable for self-service terminals, self-service recharging machines, automatic vending machines and media inquiry machines.
