Motor Card Reader/Writer

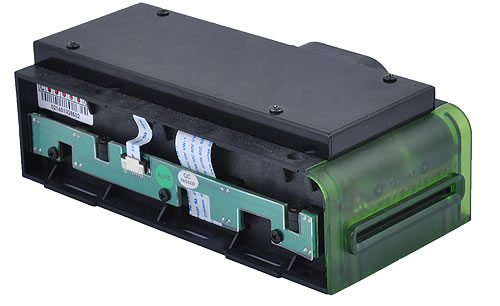

MTK-A6 Multipurpose Motor Driven Card Reader/Writer

MTK-A6-motor-reader

MTK-A6S &MTK-A6L Profile

MTK-A6 Series motor Card reader is the compact hybrid motor card reader which supports Magnetic reading and IC/RFID Card reading&writing. MTK-A6 adopts wear-resistant and corrosion-resistant plastic for main body design, which provides high standard accurate control in manufacturing. Also, it minimizes Radio frequency interference and is more applicable for extreme conditions.

MTK-A6 is a key part in self service terminals such as ATM, access control, car parking systems, AFC, etc.

Features:

  1. High reliability and durability with compact design;
  2. Built-in electrical Shutter for preventing vandalism, dust and object intrusion;
  3. Complete Belt Driven mechanism for silent and stable operation;
  4. HiCo&LoCo magnetic card decoding and ISO standards compliant for chip card protocol handling
  5. Modular sensor board and magnetic head for easy maintenance;

Specifications:

  • Supported Card Types:
    • Magnetic: ISO 7810 ID, ISO7811(HiCo or Low Co Read Only);
    • IC: ISO 7816 Compliant, T=0&1;
    • RF: ISO14443 Compliant,  Type A&B;
  • Card Dimensions: 54x86mm, 0.2~1.2mm Self Adaptable;
  • Communication: RS232/USB;
  • Power Supply: DC12V2A;
  • Lifespan: Magnetic Head>800,000 times; IC contact>500,000 times;
  • Temperature: -20~+60℃(Working); -30~+70℃(Storage);
  • Dimension(LxWxH): 245x137x93mm;
  • Weight: 0.4Kg;

MTK-A6 Series Motorized Card Readers generally satisfy your application in various self service terminals. The machine is supplied with full support of communication protocol and relevant SDK for your quick deployment.
