Card Recycling Machines Motor Card Dispensers

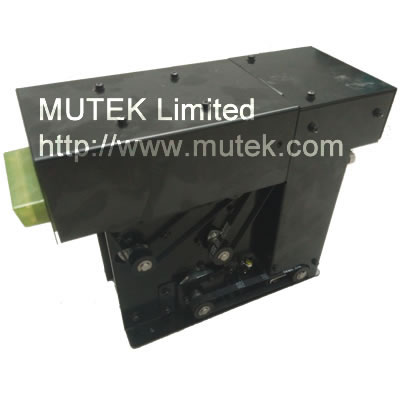

MTK-F38 Card Circulating Machine (Motorized Card Circulator)

MTK-F38 Circulating Card Dispenser

MTK-F38 Circulating Card Dispenser

MTK-F38 Card Circulating Machine permits unattended card circulation. The motorized card circulator dispenses cards and callback for reissue constantly and circularly. Smart card Reader is integrated for reading/writing contactless/contact IC cards.

Features:

  • Circulated card dispensing and collecting without human intervention;
  • Small and exquisite design for easy integration into slim chassis or desktop terminals;
  • Auto-Tuning of cassette Depth to assure stability of collecting and re-dispensing;
  • Good layout of sensor groups for monitoring and feeding back machine status;
  • Ready to use RF&IC readers embedded for popular contact/contactless cards;

Specifications:

  • Card Dimensions: 55mmx88mm; fixed 0.8mm thickness;
  • Cassette Capacity: Maximum 50pcs;
  • Integrated Reader Spec:
    • Contact Cards: ISO7816 T=0/T=1;
    • Contactless Cards: ISO14443 Type A&B;
  • Communication: RS232;
  • Power Supply: DC24V±5%2A;
  • Dispense/CallBack Speed: Typ. 2.0 seconds
  • Dimensions: 236(L)x112(W)x154(H)mm
  • Weight: 1.4Kg;
  • Temperature: -10℃~50℃;

MTK-F38 aims to minimize the maintenance and human intervention during operation. With the robust and reliable auto-circulation mechanism, MTK-F38 Circulating Card Dispenser offers great flexibility and convenience in self-service terminals for hospitality, healthcare and other areas with frequent flow of customers.  Related communication protocol, API and demo programs are provided for quick development and deployment.
