Magnetic Card Swiping Readers

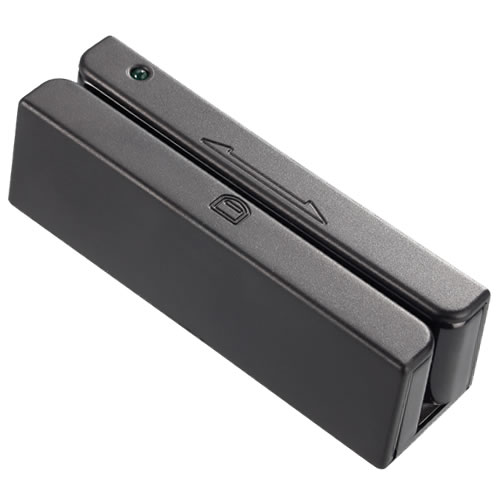

MTK-T5 Magnetic card Swiper for Kiosk, POS and Self-service Terminals

POS Magnetic Card Swiper

MTK-T5 Magnetic Card Reader Moudle

MTK-T5 is a magnetic card reader module specially designed for kiosk, POS and various self-service terminals.  It’s a PBOC certified swiper to support ISO7811/78121 magnetic card reading. And also T5 can be configured to bidirectional swipe single/dual/triple ISO tracks with USB, RS232 or TTL interfaces.

Product Specification:

  • Input: DC5V ± 5%; 40mA;
  • Communication Interface: RS-232 /USB /TTL /Keyboard(optional);
  • Life Cycle: 500,000 times for magnetic head;
  • Weight: ~30g/unit;
  • Dimension: 90L x 27W x28H mm;
  • ENVIRONMENTAL:
    • Storage: 0°C to 50°C, 0 to 90% RH without condensation;
    • Working: -20°C to 70°C, 0 to 90% RH without condensation;
  • Speed: 15~120cm/sec

MTK-T5 Kiosk Mangetic card swiper reader module is a card reading device specifically suitable for POS, banking, and hospitality kiosks. It’s compact and structured in design and can be easily integrated in wide range of self service applications.
