PT3901/3902 Half Insertion PC/SC IC card Reader

PT3901_DIP_IC_Reader

PT3901 Manual Insert PC/SC Card Reader

PT-3901/3902 is a half-insertion manual IC card reader&writer designed for ISO-7816 cards. The reader follows PCSC specification, which facilitates the integration and development.

With simple, compact and robust design, it’s suitable for various applications in financing, gaming, casino and other self-service terminals, etc.

Product Specifications:

  • Card Type: ISO7816 Classes A/B/C (5V, 3V), ATMEL, SIEMENS series card
  • Interface: USB 2.0(PCSC) or RS232(Options)
  • Baud Rate 9600(default)~115200 BPS
  • Cassette life: >300,000 times (Valid insertion)
  • Input: +3~5.5VDC 60mA
  • Operation Environment: 0°C~60°C, 5%~95%RH
  • Storage Environment : -20°C~60°C, 20%~90%RH
  • Dimension: 101mm(L) x 93mm(W) x 25mm(H)
  • Installation: Front Mounting with Bezel; Board Mounting W/O bezel

OS platform Tested and Supported:

  • Windows XP or above;
  • Unix/Linux Related: Debian, Ubuntu, Mac OSX, Raspberry Pi Raspbian

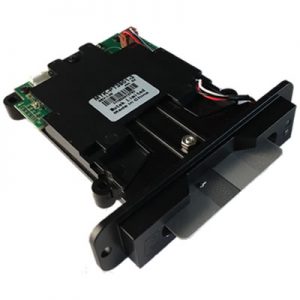

PC/SC Full Insert Reader

Full Insert PC/SC Reader

The model is now also available also in full-insert mode

PT3901 card reader provides an economical and stable solution for Contact Chip card reading writing. It’s applicable in the following areas:

  • POS terminal
  • Tax system
  • Medical and insurance system
  • Gaming system
  • Oiling machine
  • Public phones
