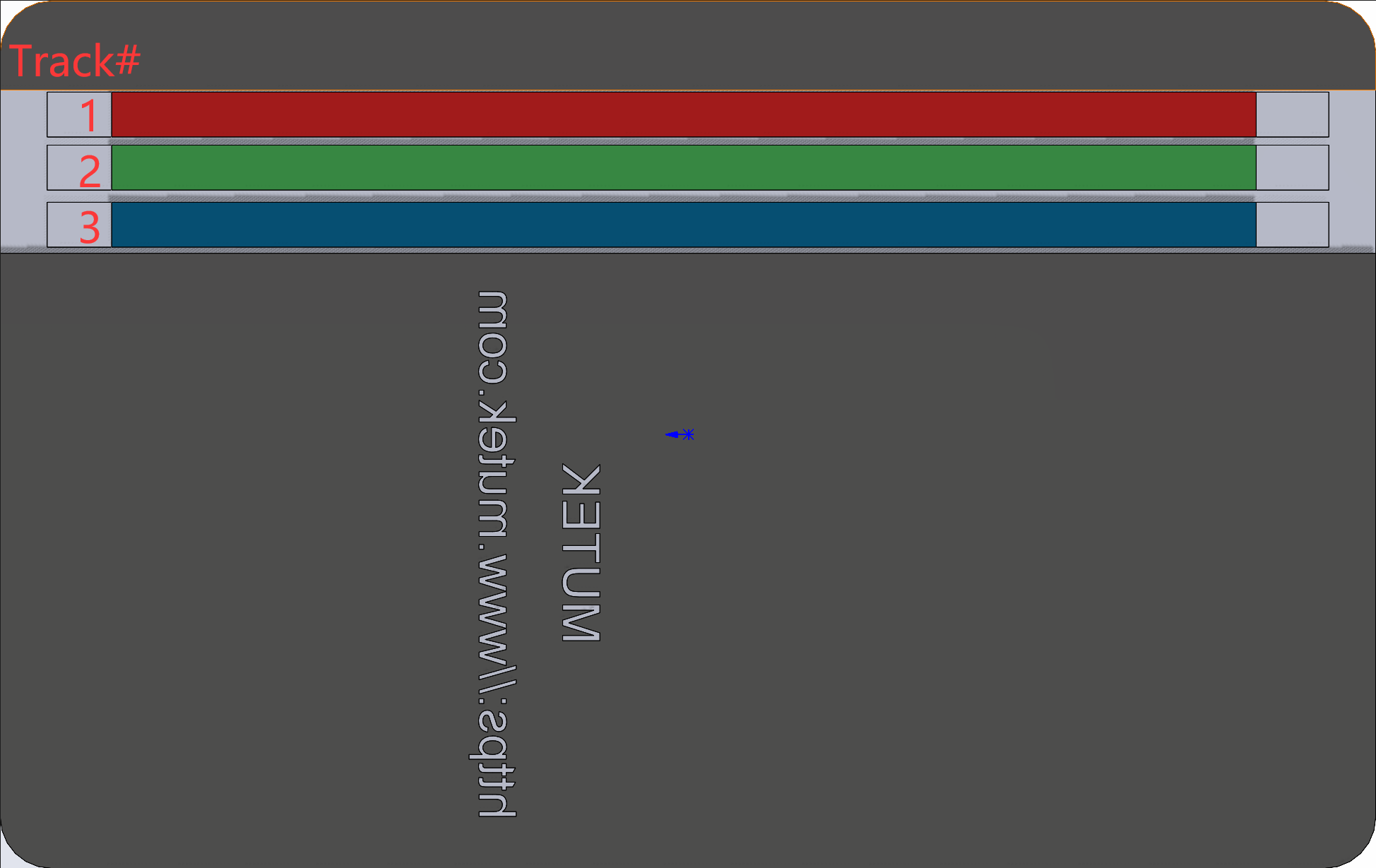

A free 3D step file that denotes card dimensions and the magetic stripe locations according to ISO7810&7811 and ISO/IEC 7816 Contact IC card.(Download Link at the bottom)
![](https://www.mutek.com/wp-content/uploads/2024/05/MagneticCardTrackDimensions.png)

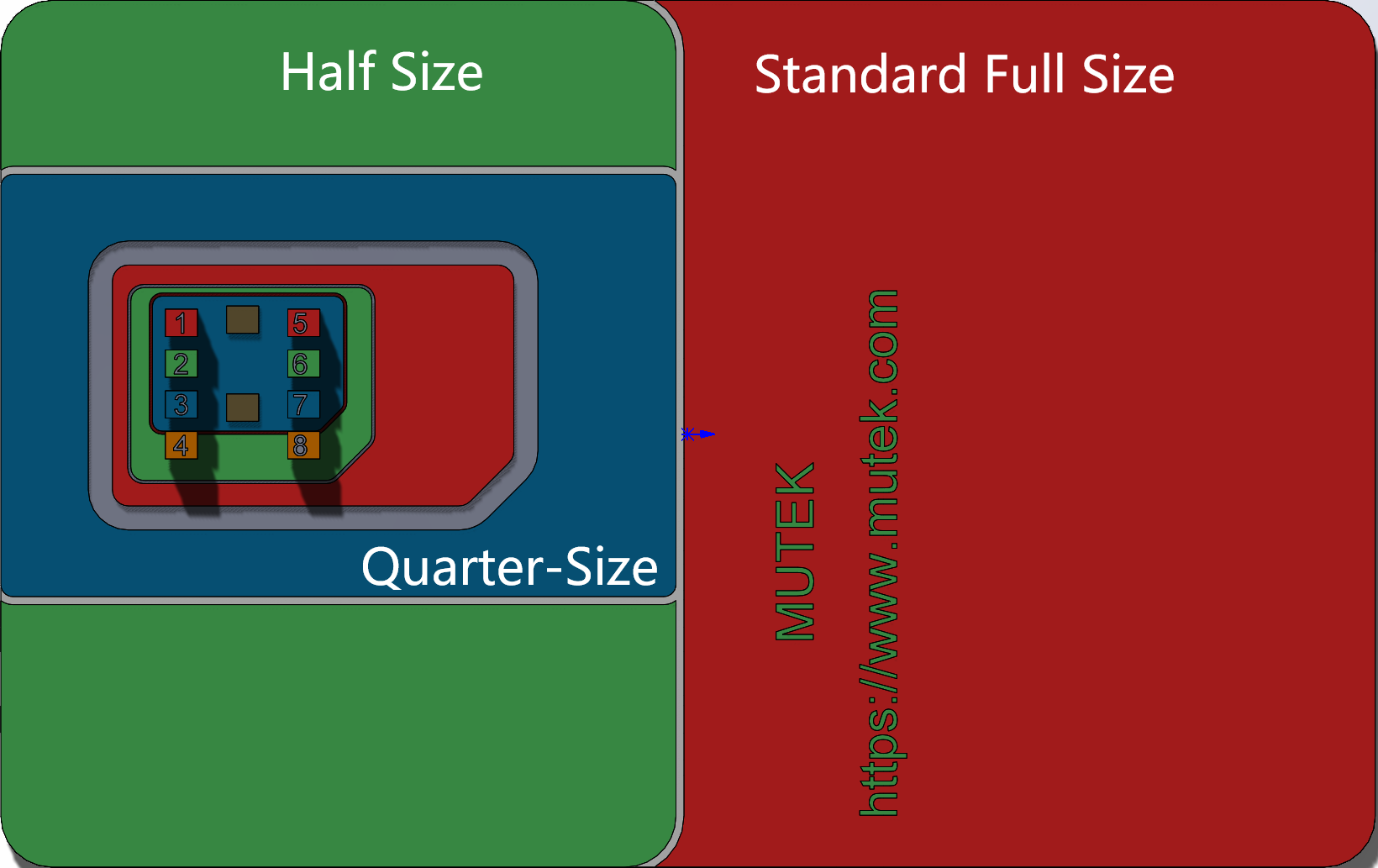

The 3D also shows the Contact IC locations and all contact Pin locations and numbers according to ISO/IEC 7816(An international standard related to electronic identification cards with contacts, especially smart cards). All popular retail SIM card sizes(Full Size, half-size and quarter-size) are marked on the surface. Micro, mini and nano-SIM card dimenisons are marked on the surface.
![](https://www.mutek.com/wp-content/uploads/2024/05/ContactSIMCardDimensions.png)

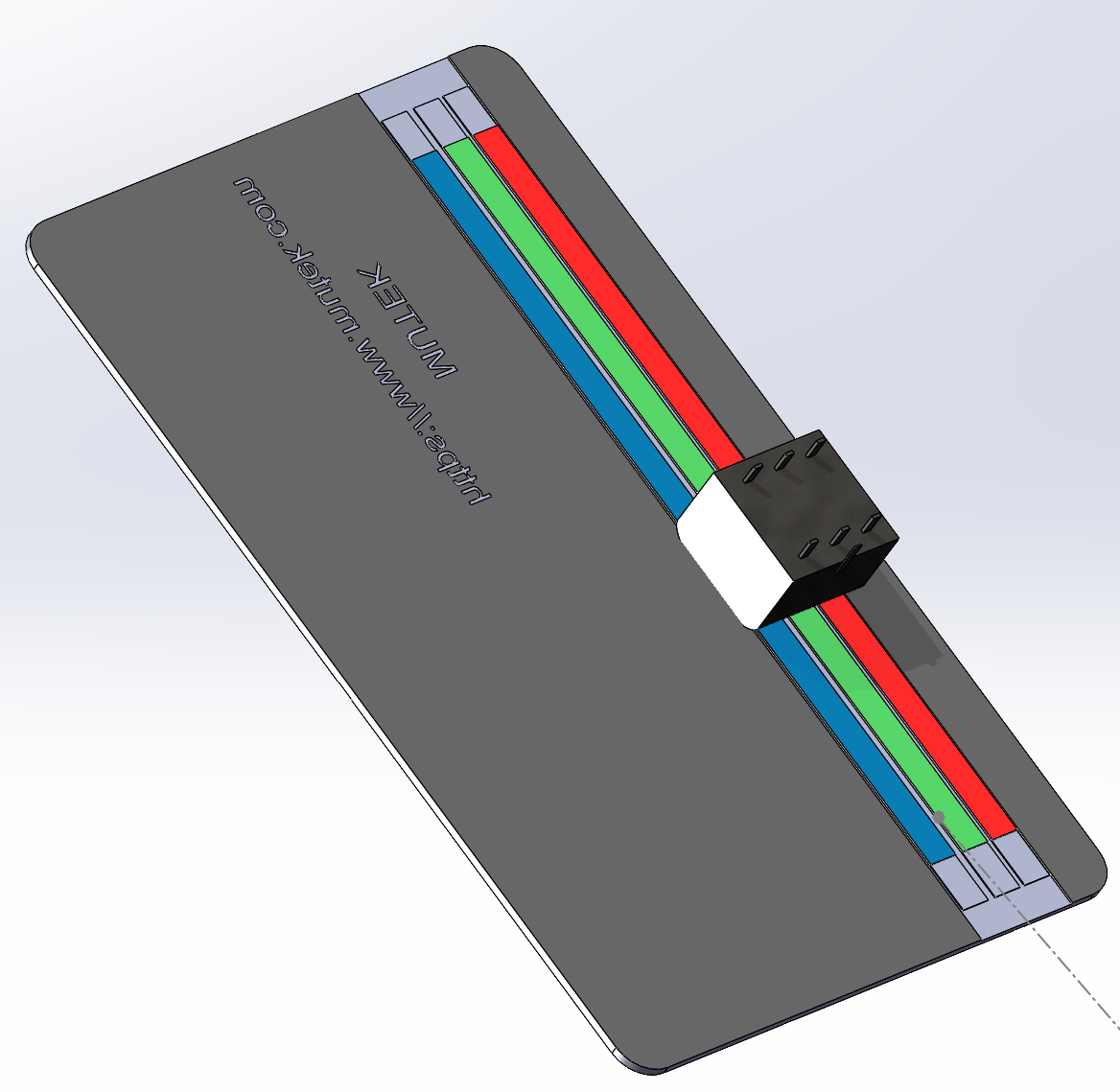

This 3D is an internal standard file in designing our magnetic, smart card readers and smart card/SIM card dispensers, you can feel relaxed to use for your own reference.
![](https://www.mutek.com/wp-content/uploads/2024/05/MagneticHeadMagneticStripeAlign.png)

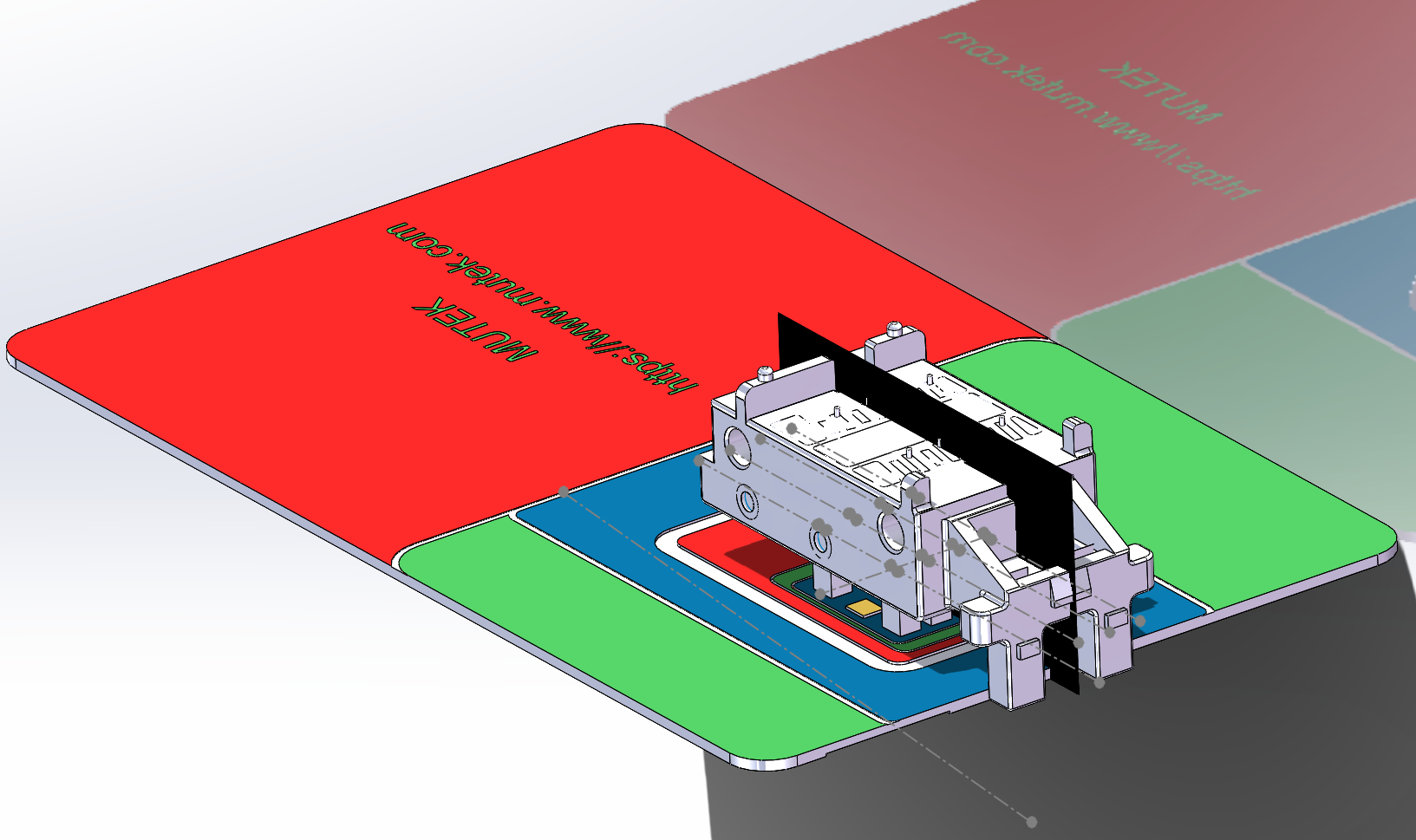

![Contact IC Pin Assembly with IC Card Connector](https://www.mutek.com/wp-content/uploads/2024/05/ContactReaderConnection.png)
