Card Issuing Machines

Auto Card Issuing Machine MTK-F12

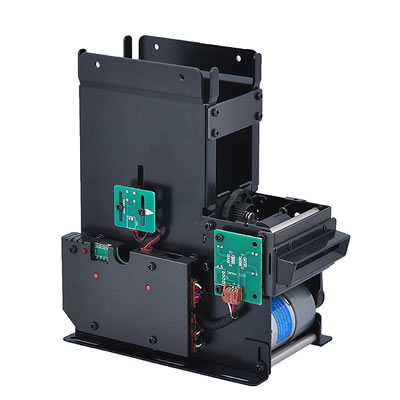

MTK-F12 card issuing machine

MTK-F12 Auto Card issuing machine

MTK-F12 is the short profile auto card issuing machine applicable for dispensing plastic and paper cards, coupons and vending tickets.  The 146mm installation length allows more adaptability for application in various card vending solutions.

With optional TTL and RS232 interface, the machine is ready to work with self-service computers, sensor switches or pushbutton controls, which shows flexibility in applications like access control, ticket vending, car parking management systems.

With advantage of low cost and multi-machine communication, it’s also applicable to for dispensing of different cards from one machine.

The optimized transporting mechanism assures accuracy and  robustness. MTK-F12 are suitable for plastic, paper or embossed cards in popular thicknesses.

Specification:

  •  Card Types:Plastic/Paper Cards, Embossed
    • Dimension: 50~55mmx85~86mm;
    • Thickness: 0.2~1.2mm(Factory Set 0.8mm);
    • Can hold up to 270pcs*0.4mm);
  • Life Time: 500,000times
  • Communication Port: RS-232/TTL;
  • Power Supply: DC 24V±5%;
  • Temperature:-10℃~60℃;
  • Weight: 0.7Kg;
  • Dimension: 146x91x178mm

MTK-F12 avails short profile design, it’s not possible to integrate reader/writer modules, please refer to MTK-F11 standard card dispenser if you need to customize with your own modules.  For dispensers with integrated R/W function, please refer to our motor card dispenser products.
