Motor Card Dispensers

All-Function Motorized Card Dispenser: MTK-X91

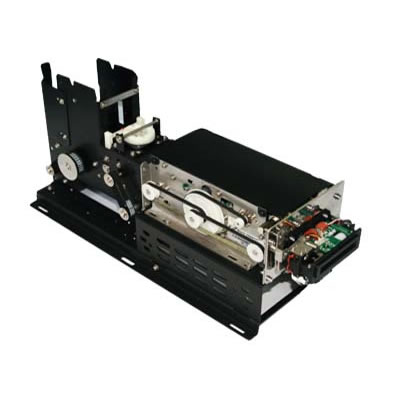

Card Dispenser: MTK-591

Card Dispenser: MTK-X91

MTK-X91 card dispenser is for issuing, reading and encoding of Magnetic, IC and RFID cards. Designed with pre-empty detection function, it’s the reliable solution for card dispensing, capturing and accepting. By turning-knob , it’s easy and precise for adjustment of different card thickness.

Specifications:

  • Display: Empty/Stuck/Ready LED Status Indicator;
  • Dispense Cycle: 1.5-2.0 seconds
  • Card Type:
    • Magnetic Card:ISO7810 ID-1,7811
    • IC card:ISO7816
    • RFID card: ISO 14443 TYPE A / B
  • Card Thickness: 0.2~1.2mm;
  • Capacity: 0.76mm*185pcs or 250/500pcs with stack extension;
  • Communication Interface: RS-232/USB;
  • Power Supply: DC 24V±10%
  • Dimensions: 292x147x175mm
  • Weight:4.0Kg
  • Temperatures -10℃~+40℃
  • Mounting options: Front Bracket or bottom slide bracket.

MTK-X91 card dispenser are supplier with full support of easy-to-use API commands, detailed technical documentations, installation guides and tester software.

Applications:

  • Card Batch Initialization;
  • Ticket Vending Systems;
  • Automatic Card Vending Machine;
  • High Way Card Issuing System;
  • Parking System;
