Postcard Dispenser, Card Issuing Machine: MTK-F19

Card Issuing Machine: MTK-F19

Card Issuing Machine: MTK-F19

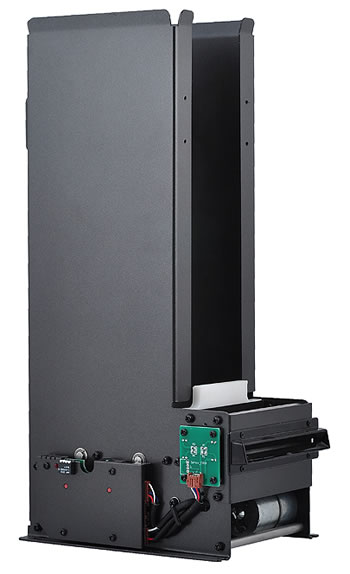

MTK-F19 is the card issuing machine designed for postcards, lottery tickets or other special cards of  120x100mm.  With pre-issuing function, the machine features high dispensing speed of 1~2sec per card. The card thickness is adjustable from 0.5mm to 3.0mm. And stackable card holder can be hold up to 500 pcs 0.5mm cards.


  •  Card Types:Plastic/Paper Cards, Embossed
    • Dimension: 120mmx100mm;
    • Thickness: 0.5~3.0mm(ISO standard cards);
    • Can hold up to 480pcs*0.5mm);
  • Life Time: 500,000times
  • Communication Port: RS-232/TTL;
  • Power Supply: DC 24V±5%;
  • Temperature:-10℃~60℃;
  • Weight: 4.0Kg;
  • Dimension: 203x138x420mm(LxWxH)

This module implements card vending function only.  No reading/writing modules can be affiliated. For R/W function, please refer to our card dispenser products
