RFID Card Reader Writer: MTK-603

RFID Card Reader Writer: MTK-603

RFID Card Reader Writer: MTK-603

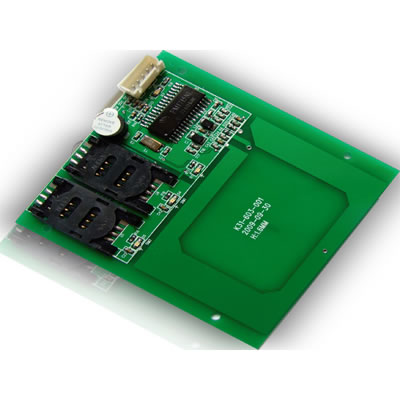

MTK-603 reader/writer is a high speed RFID card reading module that conforms to Mifare &Light Standard. It’s the low cost RFID reading/writing solution for a wide variety of hobbyist and commercial applications, including access control, automatic identification, robotics, navigation, inventory tracking, payment systems, and car immobilization.

Features:

  • High speed RFID reading/writing, high reliability and low power design;
  • Auto card presence detection, programmable LED indicators and Beepers;
  • Data storage for card reading/writing and other functions;
  • Support ISP online features;

Specifications:

  • Card Type: Mifare 1K/4K, UltraLight, ISO14443-4 TYPE A&B, ISO7816 ;
  • EEPROM: 512 byte;
  • Power Supply:  DC 5V±5%, Max 150mA;
  • Reading Distance: 70mm;
  • Interface: RS-232;
  • Operating Frequency: 13.56MHz;
  • Operating temp range: -40 to +185 °F (-40 to +85 °C)
  • Dimension: 86.5*80mm;
