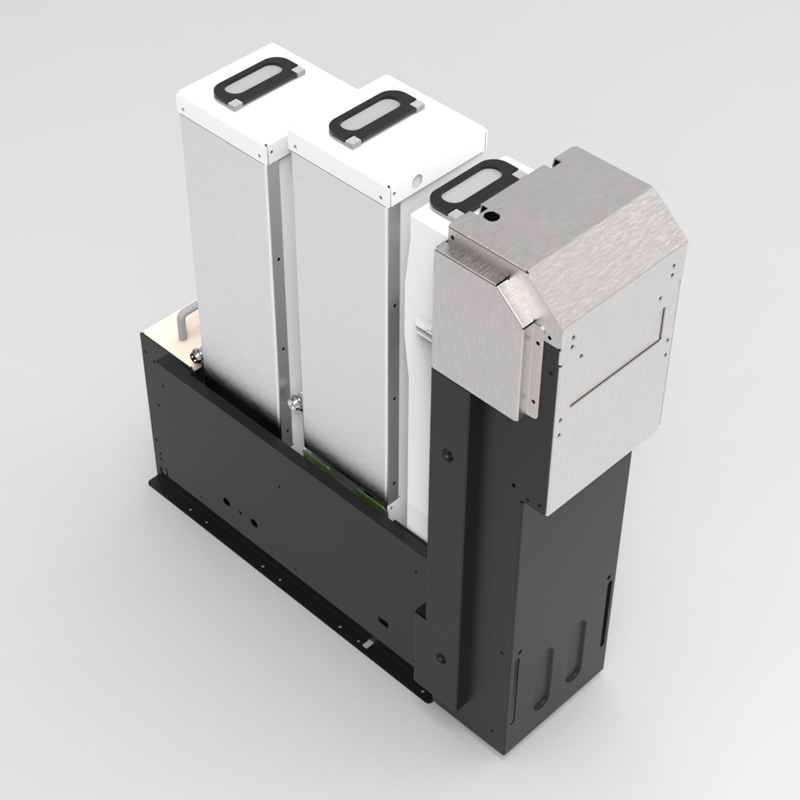

MTK-U6S Medium/Token Dispenser with integrated barcode scanner

MTK-U6S is a box dispenser for thick medium such as boxes, tokens, ingots etc. With 2 portable and lockable cassettes, the medium dispenser can accurately select and dispenser box from certain hopper. Integrated barcode scanner can reader barcode or QR-Code before dispensing. Electrical shutter helps to provide security and prevent vandalism. Recycle box are equipped to allow remained box to be recycled upon demand or timeout.


  • Single/Dual Cassettes options for maximum capacity of up to 50 ingots;
  • 1D or 2D barcode scanner integrated for tracking and recording dispensed items;
  • Accurately detect and report pre-empty, empty, capacity and box position status with multiple sensor groups.
  • Enclosed and lockable cassettes, portable and manageable separately.
  • Auto diagnosis and report of status, fault and errors, auto reset functions;
  • Recycle Bin included for recycling of maximum 4 boxes;


  1. Medium Dimension: 100±1mmx80±0.5mm;
  2. Allowed Medium Thickness: 15~20mm;
  3. Communication: RS232 9600bps;
  4. Work Voltage DC24V±5%
    Idle Current 200mA
    Max Current 2.5A
  5. Cassette Capacity: 30 Sets (20mm thickness) / 40Sets(15mm thickness)
    Recycle Capacity: 5 Sets
  6. Work Condition: Temperature/Humidity: 0℃–50℃/0-90%(Non-Condensed)


MTK-U6S is applicable in variable of banking automation kiosks for dispensing bank tokens, cards, gifts, leaflets enclosed inside boxes, which greatly improves efficiency and customer experience.
