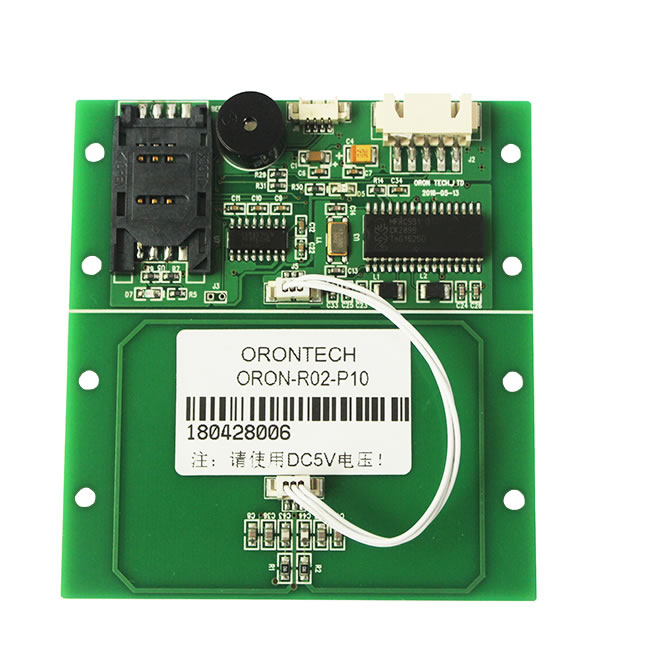

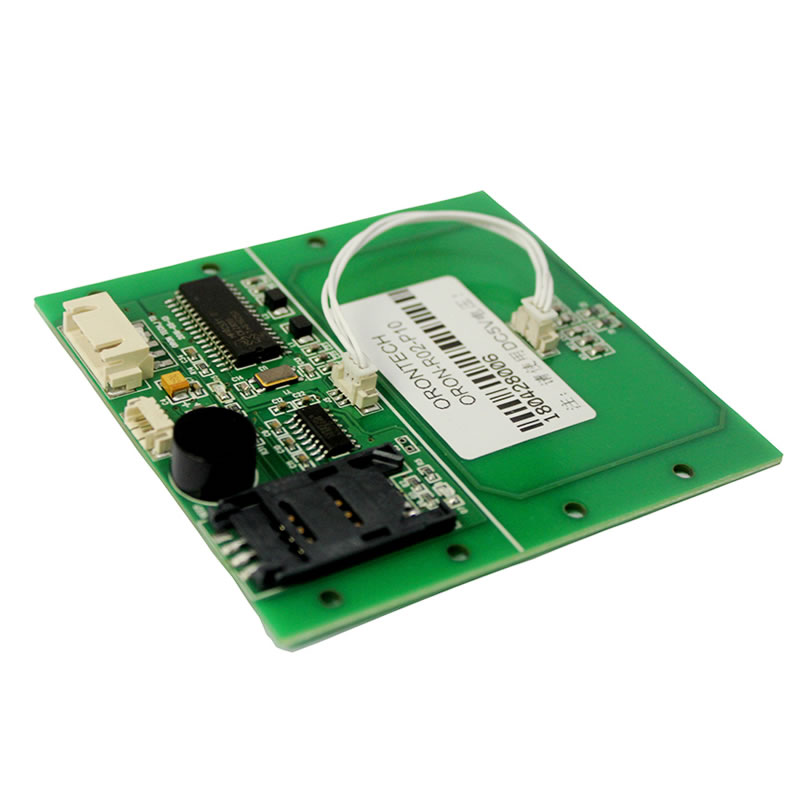

R02-P10 RS232 RFID Card Reader Module With SAM Slot

R02-P10 is a Smart Contactless Card Reader module with integrated SAM Slot. This RFID Card Reader supports wide ranges of smart cards/tags of Mifare Classic S50, S70, Desfire and Ultralight, and ISO14443-4 Type A &B CPU cards. The integrated SAM slot can use ISO7816 SAM cards.

R02 RFID Reader


  • Communication: RS-232 @ default baud rate 19200;
  • Working voltage: DC5v±10% with over voltage protection;
  • Input current: ≤200mA@working, <150mA@idle;
  • Card Type: Mifare 1K/4K, UltraLight, DESFIRE, PLUS cardISO14443-4 TYPE A&B;
  • Auto Card detection and type recognition;
  • Read Range: ≤60mm;
  • Inbuilt Anti-collision mechanism for detecting and reporting multiple card presence in the RF area.
  • Support IAP Download;
  • Size: 80mm*86.5mm; Weight: About 100g;


Auto Fare Collection(AFC) system, Car Parking Machine, ATM, Access Control terminals, gaming machines and Payment Kiosks.
