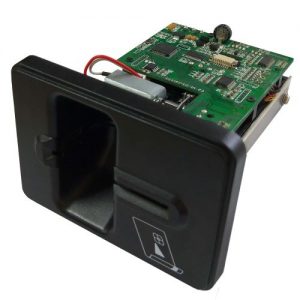

MTK-288K Advanced Insertion Hybrid Card Reader

Manual Insert Reader MTK-288K

MTK-288K Manual Insert Reader

MTK-288K is a highly reliable insertion and hybrid card reader. The device includes advanced features such as auto latching function, PSAM slot and RF antenna. The magnetic modules are optimized for decoding of warped magnetic cards in wide range of speeds.  They excel in various fields, including ATM and POS terminals, KIOSK terminals and entry/exit control systems.


  • Hybrid functions for magnetic read and IC card Read Write;
  • Long life magnetic modules and active data uploading;
  • Controllable latching lock function to retain and release card;
  • Ready to use on-board PSAM slot and flexible dual interface;


  • Card Type:
    • Magnetic Card: ISO7810 ID-1,7811;
    • IC Card: ISO7816-2, T=0、T=1 CPU Card,SAM Card;
    • RF Card: ISO14443 TYPE A&B;
    • Memory Card:  Mifare S50、S70、UL Card;
  • Power Supply: DC5V±5%(By USB or separate input );
  • Communication interface: RS232&USB(HID Compliant);
  • Life Time:
    • Magnetic head: 1,000,000 times min;
    • IC card contact: 300,000times min;
    • Latch mechanism: 500,000 times min;
  • Environmental conditions:
    • Operation:0℃~50℃/0 ~ 90% Rh(Non condensing);
    • Storage:-25℃~80℃/0 ~ 95% Rh(Non condensing);
  • Weight: 240g;


ATM/Cash Dispenser, Information & Payment KIOSK, Vending Machine, Various Kiosks.
